KStrong® Megadavit™ Floor Mount Basic Kit
Product Code: UFT551021BK

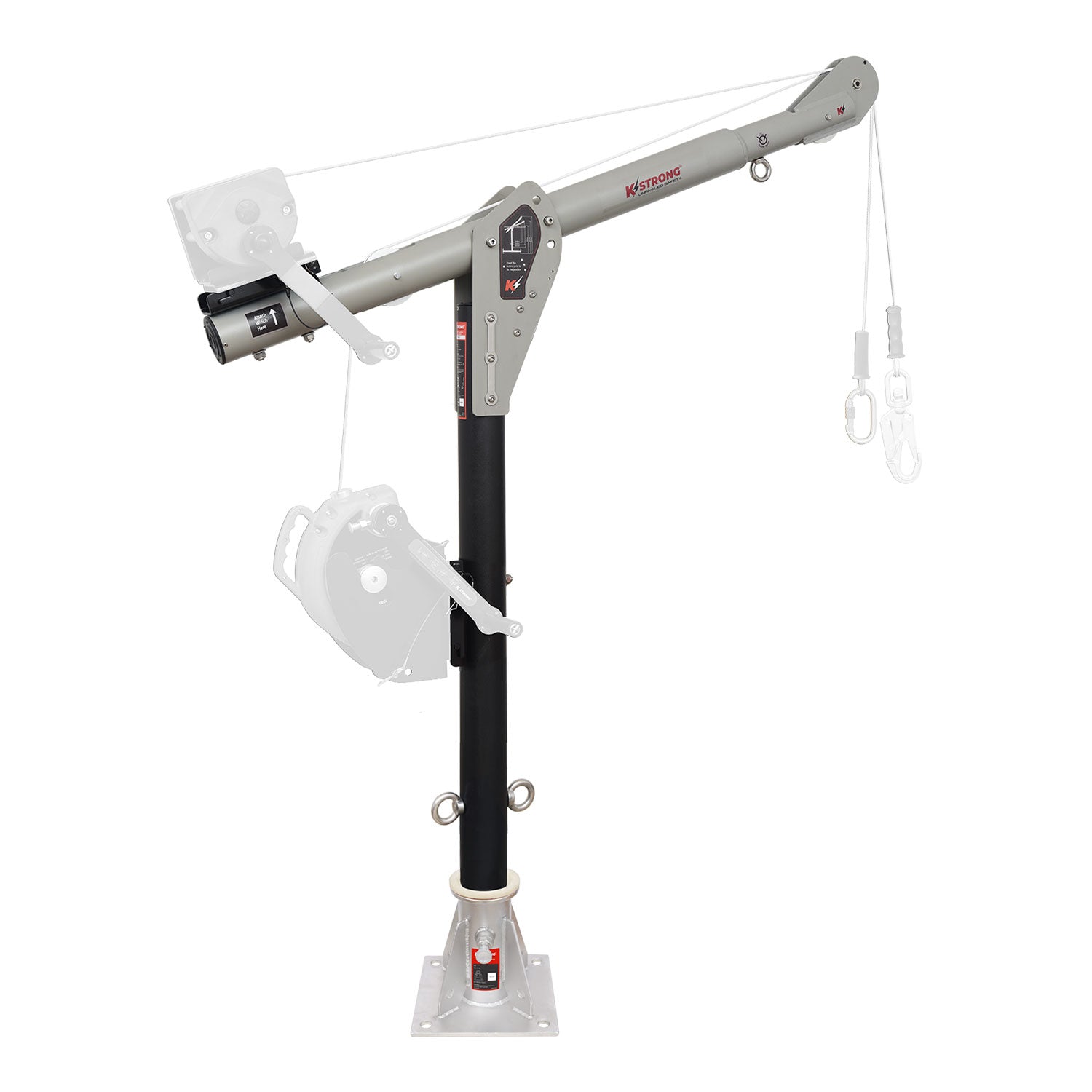

The KStrong® Megadavit™ Floor Mount Basic Kit includes the Floor Mount Column Mast Receiver, a 54 in. Column Mast, and a 3 ft. Cantilever Boom Arm with Winch Bracket. Designed for easy storage, transport, and setup, the kit breaks down into two components and requires no tools for assembly. The modular design supports various fixed and portable bases, with the cantilever arm offering three adjustable height positions. It is ideal for providing overhead anchorages in large confined spaces, featuring removable legs for easy transport and multiple anchorage points for rescue applications. The davit column assembly can rotate up to 360° for flexibility during use. The floor mount base is designed to be mounted to concrete or steel structures and must be approved by a qualified engineer according to local regulations.
| Feature | Specification |
|---|---|
| Design | Modular design for easy storage, transport, and setup. No tools required for assembly. Supports various fixed and portable bases. Cantilever arm with 3 adjustable positions. Ideal for overhead anchorages in large confined spaces. Removable legs for easy transport. Multiple anchorage points for rescue applications. 360° rotation of the davit column assembly. Floor mount base designed for concrete or steel structures. Installation must be approved by a qualified engineer. |
| Material | High Strength and Durable Aluminum Alloy |
| Maximum Load Capacity | 1102 lbs. (500kgs) |
| Finish | ED coated grey |
| System Strength | 15 kN (3300 lbs) |
| Weight | 87.13 lbs ± 0.22 lbs (39.52kgs ± 0.10kgs) |
| Relevant Standards | Conforms to EN795:2012 Type B, AS/NZS 5532:2013 |
| Upper | Middle | Lower | |
| Distance from Column | 26.57 in. (0.675m) | 33.27 (0.845m) | 36.22 in. (0.92m) |
| Height of Arm | 74.8 in. (1.9m) | 63.78 in (1.62m) | 50.39 in. (1.28m) |
