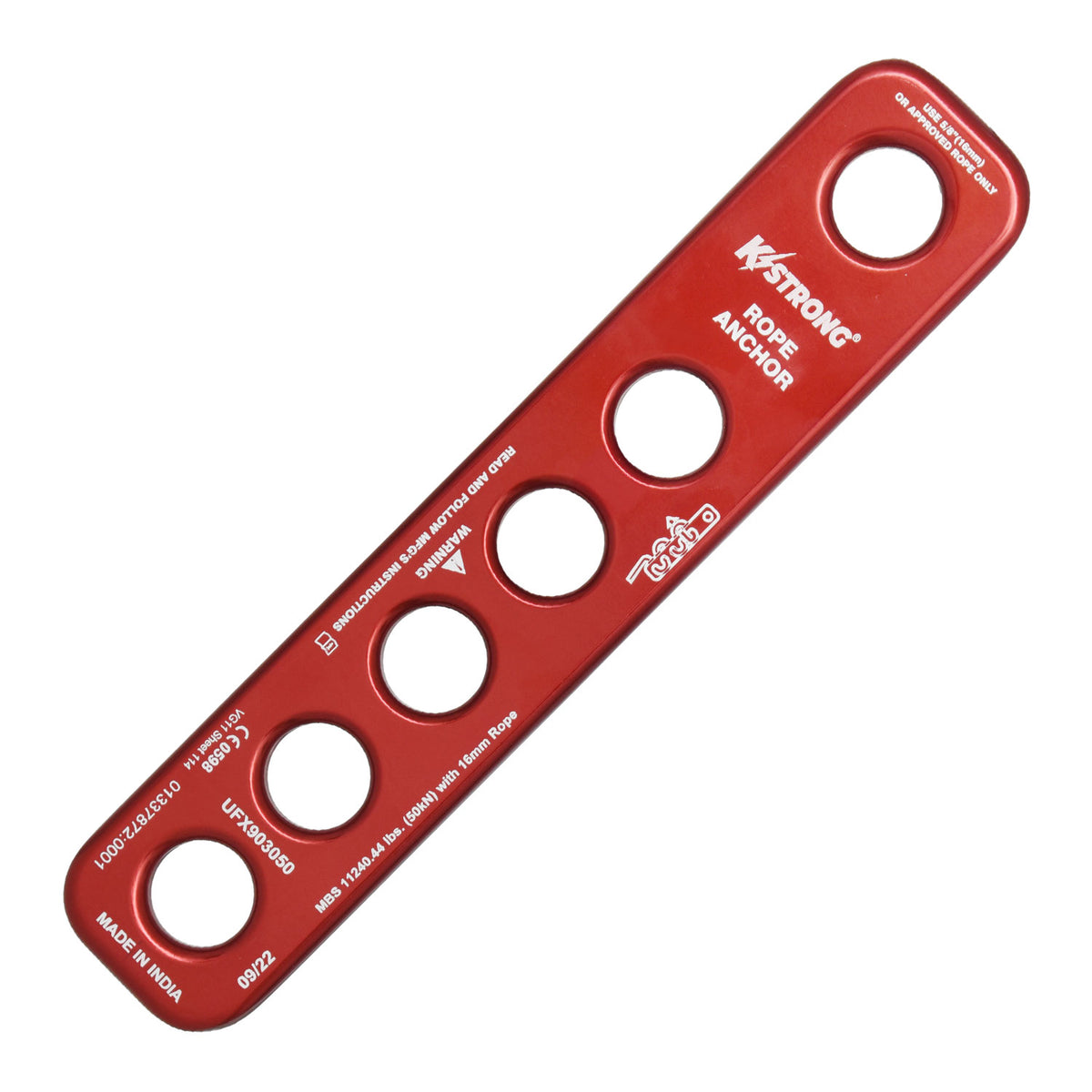

KStrong® Rope Termination Anchor
Product Code: UFX903050
The KStrong® Rope Termination Anchor allows you to seamlessly integrate an anchor connector with a vertical lifeline system. This versatile anchor point can be threaded with a rope as instructed and either hooked to another anchor connector using a suitable carabiner or looped around a compatible anchor point to create a self-sufficient system. Ideal for use with hard-to-reach fixed anchors, the Rope Termination Anchor is designed for quick emergency exits and lowering from one level to another using an escape rope and connecting hardware.
Feature |
Specification |
|---|---|
| Design | Provides an anchor point for lifelines using the top hole for connecting to anchorage and the others for threading the rope. Suitable for quick emergency exits and lowering using an escape rope. Compatible with 5/8” (16mm) 3-strand double braid rope or 7/16” (11mm) kernmantle rope lifeline. The plate offers a quick reusable field termination, eliminating the need for knots, splices, eyes, or factory terminations. |
| Minimum Breaking Strength | 23 kN (5000 lbs.) |
| Material | High Strength Aluminum Alloy |
| Finish | Powder coated |
| Weight | 0.55 lbs. ± 0.02 lbs. (248.5 gm ± 10 gm) |
| Relevant Standards | Meets or Exceeds all applicable OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012. |
