Wall Mount Basic Kit

SKU: UFT551031BK
Regular price $3,833.64

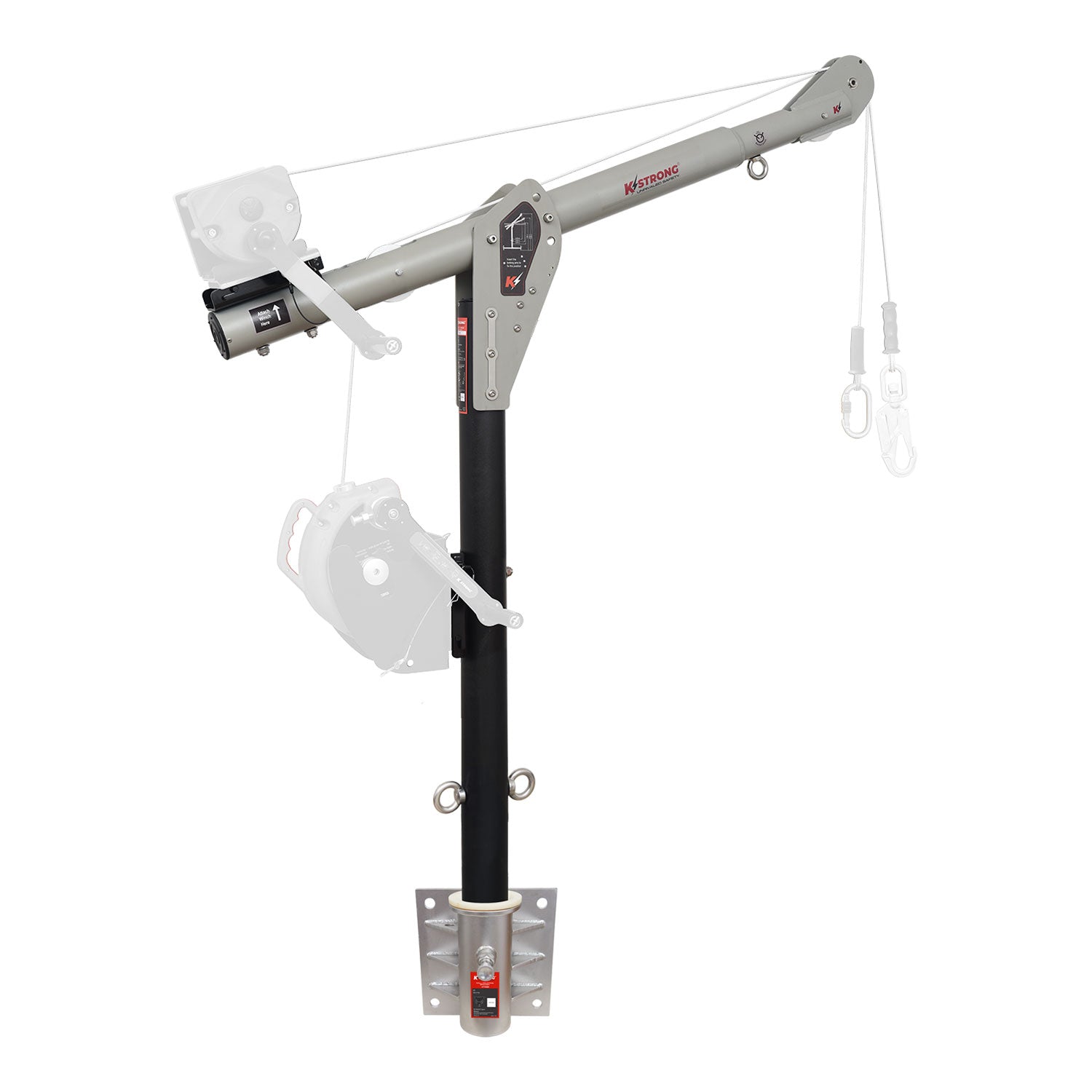

KStrong® Megadavit™ Wall Mount Basic Kit


Product Code: UFT551031BK

The KStrong® Megadavit™ Wall Mount Basic Kit includes an H-Base Frame Assembly, a 54 in. Column Mast, and a 3 ft. Cantilever Boom Arm with Winch Bracket. Designed for easy storage, transport, and setup, the kit breaks down into two components and requires no tools for assembly. The modular design allows for various fixed and portable bases, with the cantilever arm offering three adjustable height positions. This kit is ideal for providing overhead anchorages in large confined spaces and features removable legs for easy transport and multiple anchorage points for rescue applications. The davit column assembly can rotate up to 360° for flexibility. The wall mount base is designed to be mounted to concrete or steel structures, and installation must be approved by a qualified engineer according to local regulations.


Feature Specification
Design Modular design for easy storage, transport, and setup. No tools required for assembly. Supports various fixed and portable bases. Cantilever arm with 3 adjustable positions. Ideal for overhead anchorages in large confined spaces. Removable legs for easy transport. Multiple anchorage points for rescue applications. 360° rotation of the davit column assembly. Wall mount base designed for concrete or steel structures. Installation must be approved by a qualified engineer.
Material High Strength and Durable Aluminum Alloy
Maximum Load Capacity 1102 lbs. (500kgs)
Finish ED coated grey
System Strength 15 kN (3300 lbs)
Weight 88.44 lbs ± 0.22 lbs (40.12kgs ± 0.10kgs)
Relevant Standards Conforms to EN795:2012 Type B, AS/NZS 5532:2013


Upper Middle Lower
Distance from Column 26.57 in. (0.675m) 33.27 (0.845m) 36.22 in. (0.92m)
Height of Arm 74.8 in. (1.9m) 63.78 in (1.62m) 50.39 in. (1.28m)
